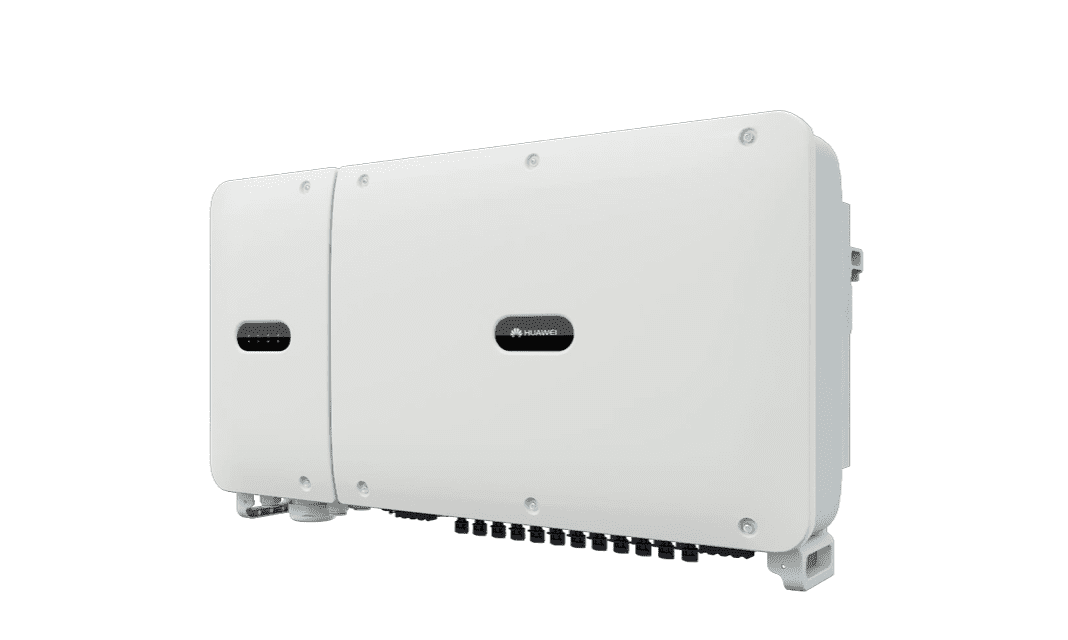

Huawei Sun2000 60KTL M0 Wechselrichter

Technical Specification SUN2000-60KTL-M0 Efficiency Max. efficiency 98.9% @480 V; 98.7% @380 V / 400 V 98.7% @480 V; 98.5% @380 V / 400 V Europeanefficiency Input Max. Input Voltage 1,100 V Max. Current per MPPT 22 A Max. Short Circuit Current per MPPT 30 A Start Voltage 200 V MPPT Operating Voltage Range 200 V ~ 1,000 V Rated Input Voltage 600 V @380 Vac / 400 Vac; 720 V @480 Vac Number of Inputs 12 Number of MPP Trackers 6 Output Rated AC Active Power 60,000 W Max. AC Apparent Power 66,000 VA Max. AC Active Power (cosφ=1) 66,000 W Rated Output Voltage 220 V / 380 V, 230 V / 400 V, default 3W + N + PE; 3W + PE optional in settings; 277 V / 480 V, 3W + PE Rated AC Grid Frequency 50 Hz / 60 Hz Rated Output Current 91.2 A@380 V, 86.7 A @400 V, 72.2 A @480 V Max. Output Current 100 A@380 V, 95.3 A @400 V, 79.4 A @480 V Adjustable Power Factor Range 0.8 leading… 0.8 lagging Max. Total Harmonic Distortion＜3% Protection Input-side Disconnection Device Yes Anti-islanding Protection Yes AC Overcurrent Protection Yes DC Reverse-polarity Protection Yes PV-array String Fault Monitoring Yes DC Surge Arrester Type II AC Surge Arrester Type II DC Insulation Resistance Detection Yes Residual Current Monitoring Unit Yes Communication Display LED Indicators, Bluetooth + APP RS485 Yes USB Yes Monitoring BUS (MBUS) Yes General Data Dimensions (W x H x D) 1,075 x 555 x 300 mm (42.3 x 21.9 x 11.8 inch) Weight (with mounting plate) 74 kg (163.1 lb.) Operating Temperature Range-25°C ~ 60°C (-13°F ~ 140°F) Cooling Method Natural Convection Max. Operating Altitude 4,000 m (13,123 ft.) Relative Humidity 0 ~ 100% DC Connector Amphenol Helios H4 AC Connector Waterproof PG Terminal + Terminal Clamp Protection Degree IP65 Topology Transformerless Nighttime Power Consumption < 2 W Standard Compliance (more available upon request) Certificate EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683, IRR-DCC-MV, G99 Grid Connection Standards IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, VDE 4120, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O. 12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, DEWA
